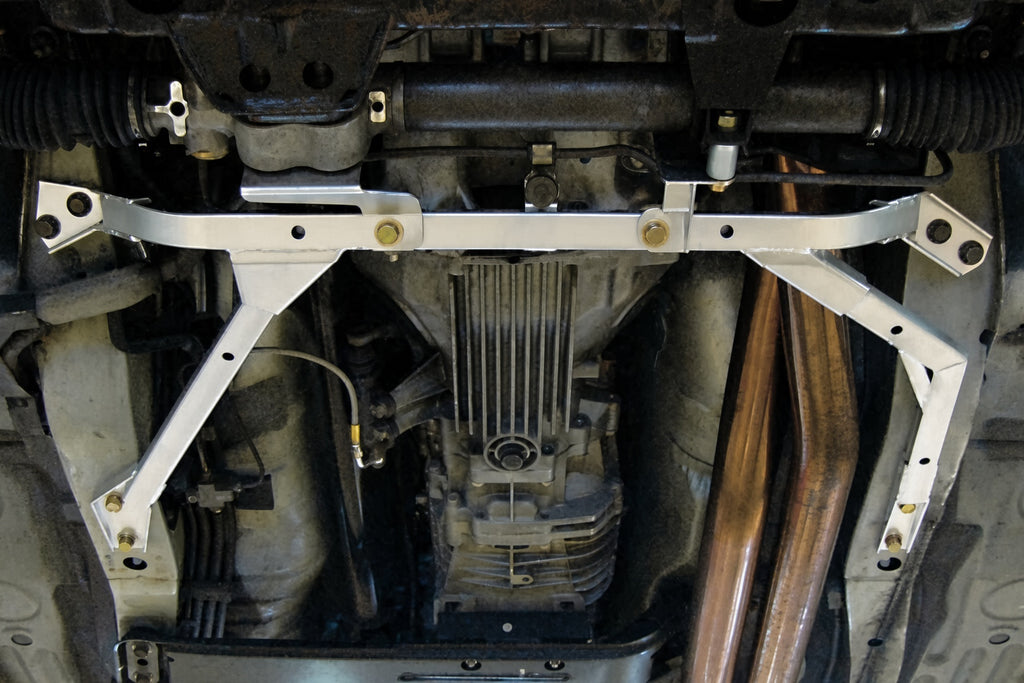

The R34 GT-R already has a stiff shell, but the front floor and steering-rack area still flex when you load the front tires hard. The NISMO Front Chassis Reinforcement Brace (part number 54422-RSR46) is the factory underfloor bar developed for every BNR34 Skyline GT-R. It replaces the genuine front cross bar, then picks up an extra mount on the steering rack so the rack, subframe, and side members work as one structure.
NISMO builds this bar from high-carbon steel tube. The job is to raise torsional and bending stiffness under the cabin, not to hang lower than the stock underbody. Properly fitted, it does not become the lowest point on the car. The payoff is less twist through the front floor, a more linear steering feel, and a chassis that stays planted when the ATTESA system and front suspension are working.
Installation is not a bolt-on refresh. After the factory front cross bar comes out, one hole must be drilled in each left and right side member, and the new rack mount is added. That is why NISMO treats this as a workshop job rather than a driveway swap.
At Terra Firma Automotive, we supply this genuine NISMO Front Chassis Reinforcement Brace so R34 GT-R owners can stiffen the front structure with the part NISMO designed for the BNR34. Choose Terra Firma Automotive for authentic NISMO chassis components built for the Skyline GT-R.
- Genuine NISMO front underfloor reinforcing bar
- Part Number: 54422-RSR46
- Position: front underfloor / front cross-bar area
- Material: high-carbon steel tube
- Replaces the genuine Nissan front cross bar
- Adds an extra mount at the steering rack
- Raises torsional and bending rigidity
- Improves linear stability and steering precision
- Does not become the minimum ground-clearance point
- Drilling required: one hole in each left and right side member
- Optional matching center bar: 76440-RSR46
- Professional installation recommended
- Developed by NISMO for BNR34 chassis reinforcement
- Available from Terra Firma Automotive
